Small Slim Panel Light round has been popular for many years as a widely used product for indoor lighting, but it has a limitation is that the cut hole is always fixed size, In order to make it more flexible and more widely used, RUNWIN developed this Cut-out Adjustable LED Small Panel Light which is suitable for the hole diameter from 55mm to 260mm.

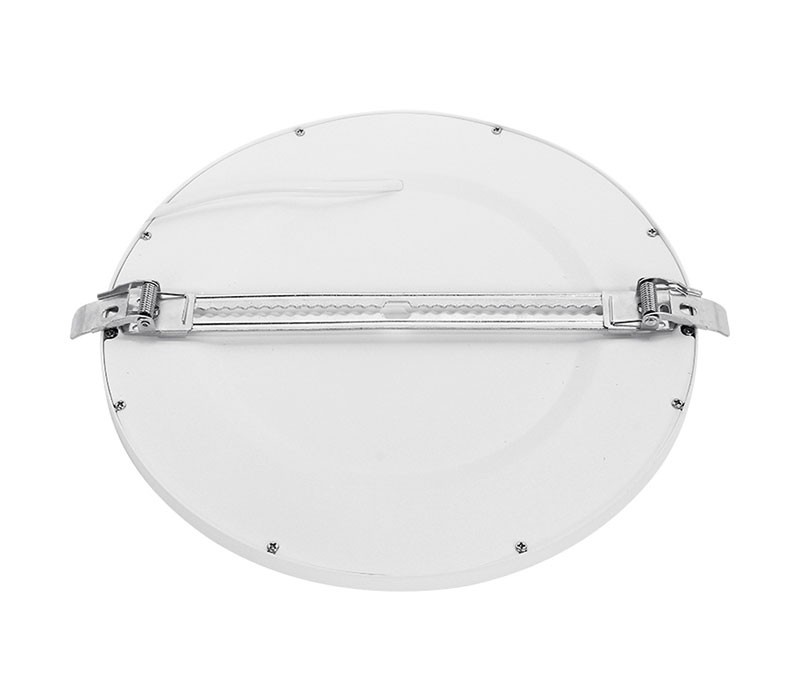

Cut-outs adjustable, flexible installation and reduce stock.
PS LGP + Aluminum frame, excellent heat dissipation and elegant appearance.
Reliable driver solution, over-voltage & short-circuit protection.
Both DOB and external driver solution available to meet different voltage requirement for different countries.
Wattage (W) | W6W/12W/18W/24W/30W |
Material | Alu+PS |
Color | White |
Voltage (V) | AC220-240V |
Hz | 50/60Hz |
CRI | ＞80 |
Lumen efficiency (LM/W) | 80LM/W±10% |
Color temperature (K) | 2700K-6500K |
IP | IP20 |
Energy class | F (Led module) |
Installation | Recessed |
Warranty | 2 years |
Approval | CE/New ERP |
we designed it from 6W to max 30W,product size from φ105 to φ280 X H15mm.
We opened this mould and design it for one of our old customer with big annual quantity order which only required round shape, so currently we don’t have square version, but if you have interest and with good quantity order, we can develop it for you.
Yes, it can be wide voltage but with external driver, current DOB solution it is 220-240V AC.
